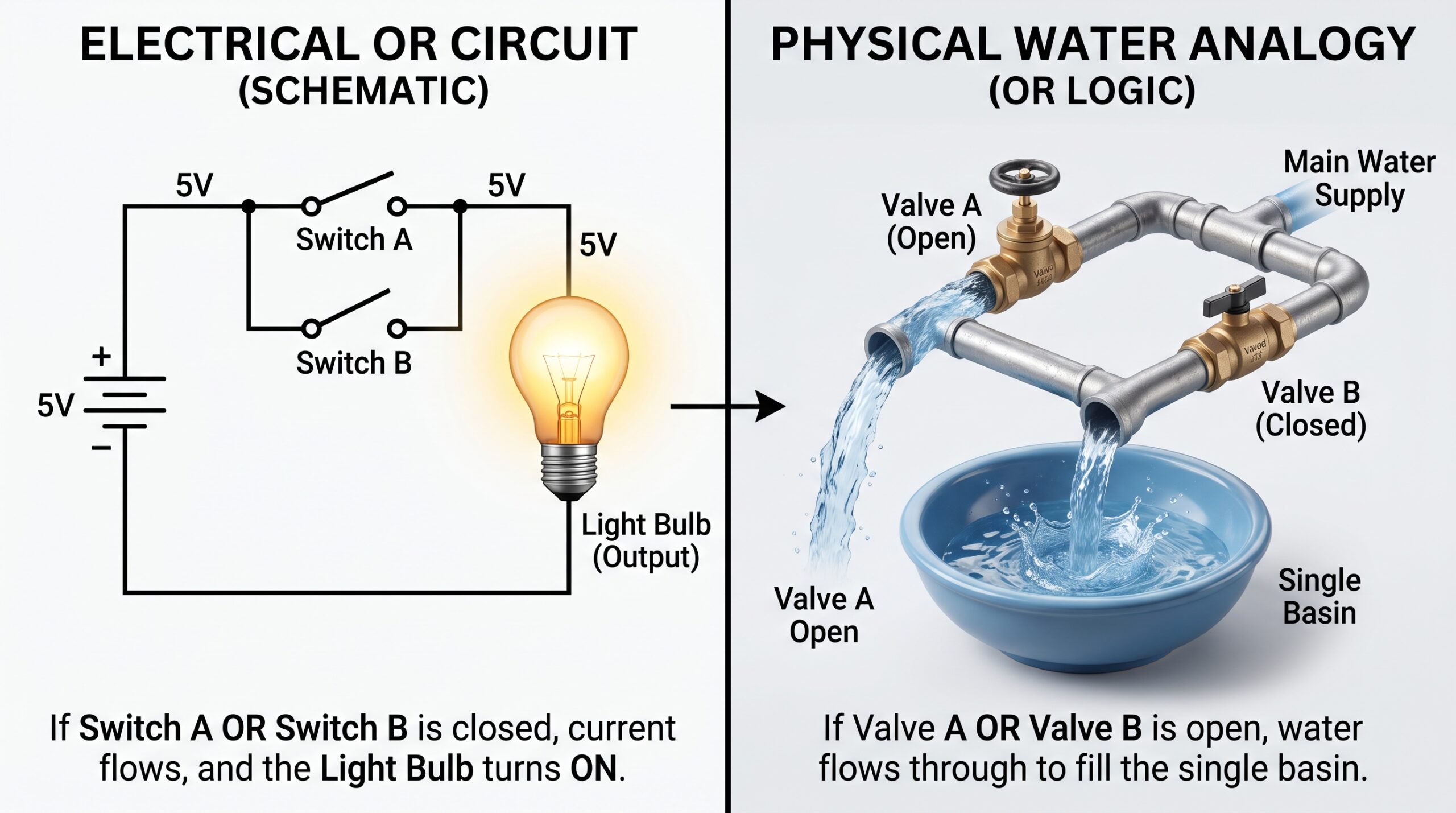

OR Circuit Explained: 7 Powerful Facts to Master OR Gates and Digital Logic
Understanding an OR circuit is an important step for anyone learning electronics, computer science, or digital systems. OR circuits are one of the basic building blocks of digital logic and are used in many devices that process information.
Many beginners get confused because the word “or” has a different meaning in everyday language compared to digital electronics. In normal conversation, “or” often means choosing between options. In digital logic, an OR circuit follows a specific rule: the output becomes active when one or more inputs are active.
This complete guide explains OR circuits, OR gates, digital logic, truth tables, symbols, working methods, applications, and common mistakes in an easy way.
Quick Answer: OR Circuit Explained
An OR circuit is a digital logic circuit that produces an output when at least one input signal is ON or HIGH.
Simple rule:
One active input is enough to activate the output.
If all inputs are OFF, the output remains OFF.
1. What Is an OR Gate?
An OR gate is a basic logic gate used to perform an OR operation in digital electronics.
It normally contains:
• Two or more inputs
• One output
The output depends on the condition of the inputs.
Examples:
Input A = ON
Input B = OFF
Output = ON
Input A = OFF
Input B = OFF
Output = OFF
Key insight: An OR gate responds when any input receives a signal.
2. How Does an OR Circuit Work?
An OR circuit works using Boolean logic, a system used by computers and electronic devices to process information.
Digital systems use:
• 1 = ON or TRUE
• 0 = OFF or FALSE
The OR operation follows this principle:
• If any input is 1, the output is 1
• If all inputs are 0, the output is 0
This simple rule allows electronic systems to make decisions based on multiple conditions.
3. OR Gate Truth Table Explained
A truth table shows all possible input combinations and their outputs.
| Input A | Input B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
From this table:
• Both inputs OFF gives an OFF output
• Any input ON gives an ON output
This makes OR gates useful for systems with multiple activation points.
4. OR Circuit Symbol and Logic Expression
In circuit diagrams, an OR gate has a curved shape with multiple input lines and one output line.
The basic Boolean expression is:
A OR B = Y
or:
A + B = Y
Where:
• A and B represent inputs
• Y represents the output
The plus symbol does not mean normal mathematical addition. It represents the OR operation.
5. Real World Applications of OR Circuit Explained
Security Systems
An alarm system may activate when:
• A door sensor detects opening
• A window sensor detects movement
Either condition can trigger the alarm.
🎯 Lesson: OR circuits allow multiple ways to activate one system.
Automatic Control Systems
A machine may start when:
• Button A is pressed
• Button B is pressed
Both buttons provide possible control options.
🎯 Lesson: OR logic makes systems more flexible.
Computer Technology
Computers use OR gates inside digital circuits to process information and perform logical operations.
🎯 Lesson: OR circuits are essential parts of modern electronics.
6. OR Gate vs AND Gate: Main Difference
| Feature | OR Gate | AND Gate |
|---|---|---|
| Output Activates When | Any input is ON | All inputs are ON |
| Logic Meaning | One condition is enough | Every condition is needed |
| Example | A or B activates system | A and B activate system |
Easy memory:
OR = One is enough
AND = All are needed
7. Common Mistakes About OR Circuit Explained
Mistake 1: Thinking OR means only one choice
Why it happens:
People use “or” differently in everyday language.
Correction:
In digital logic, OR allows one or multiple active inputs.
Mistake 2: Confusing OR with AND logic
Why it happens:
Both are common logic gates.
Correction:
OR needs any active input, while AND requires all inputs.
Mistake 3: Thinking 1 and 0 are normal numbers
Why it happens:
The symbols look mathematical.
Correction:
They represent digital states like ON and OFF.
Memory Trick: OR Circuit
Remember:
OR = Output Responds
If one input responds, the output responds too.
Expert Insight: Why OR Circuits Are Important
OR circuits are one of the most important foundations of digital electronics. They allow systems to combine different signals and respond when multiple conditions are possible.
From simple switches to advanced processors, OR gates help electronic devices make logical decisions.
Learning OR circuits also helps students understand larger topics such as computer hardware, programming logic, and digital system design.
